INDICATOR BOLTS
The Lenlok series of indicator bolts include many different options for a variety of toilet partitions. Distinguished by shape, size, type of fitting such as surface mounted or morticed lock, disability standards or not, and material used, the Lenlok range of indicator bolts will suit most commercial buildings.
LENLOK XCEL SLIDE LOCK & INDICATOR
Modern design ideal for new or refurbished establishments, especially commercial applications.
- Has a round external indicator with an oval designed interior body
- Supplied complete with matching staple and bumper included
- Unique Slide Lock is made specially for restricted hand mobility, limb loss and hygiene protection. It has raised directional arrows for the vision impaired and is designed to satisfy Australian Standard AS1428.1
- Supplied with a functional modern designed lift off staple
- The external indicator is concealed fixed, surface mounted & is supplied with an anti pull through fixing plate. The indicator denotes red for engaged and green for vacant.
- The bumper is a contemporary slim line design, concealed fix with a snap on cover
- Zinc diecast construction, with snap on covers provided with the lock body, staple and bumper
- Consistent installation saves time
- Available in a satin chrome finish
LENLOK 100 SERIES LOCK & INDICATOR BOLT
The 100 series are surface mounted with an emergency slot release with two different designs of internal turns. Two options to choose from.

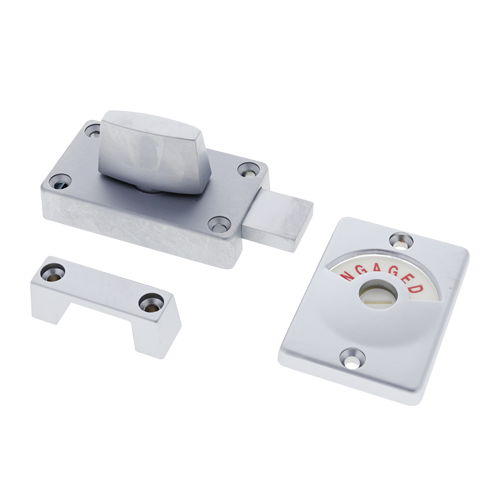

M100SF Model

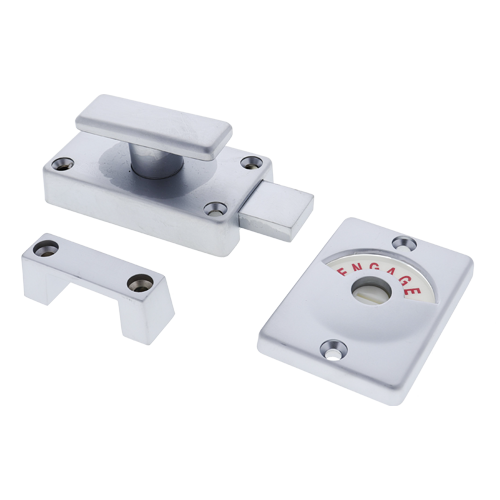

M100ASF Model
- 100 model has a stylish centred turn knob with visible fixing and a slot release mechanism from the outside
- 100A model has a practical centred T style turn with visible fixing and a slot release mechanism from the outside
- Both models are supplied with an internal turn, a “vacant” or “engaged” external indicator and a staple to house the locking bolt
- Indicator measures 60mm x 45mm
- Back case measures 70mm x 40mm
- Made of diecast zinc construction
- Available in a satin chrome finish
LENLOK 200 SERIES LOCK & INDICATOR BOLT
The 200 series are surface mounted with an emergency slot release (200 model) or turn button safety release handle from the outside (200A model).

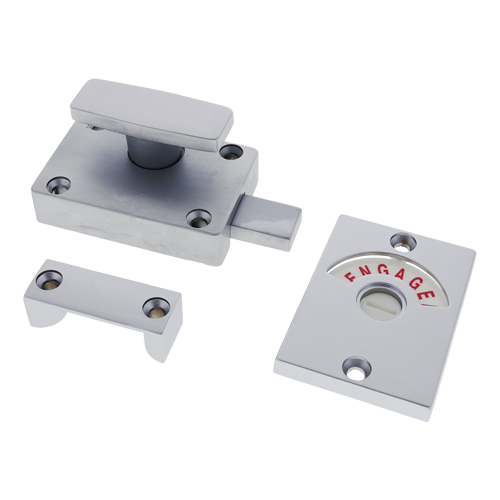

200 Model

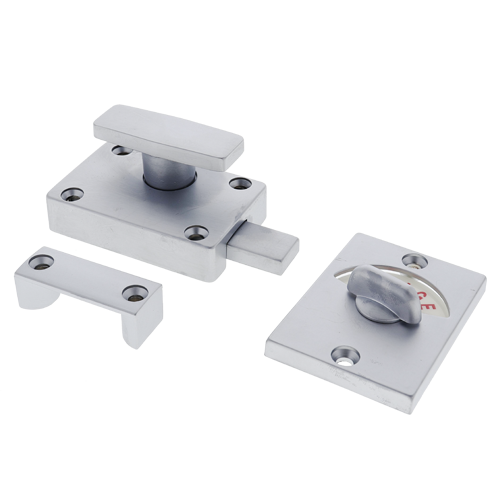

200A Model
- 200 model has a has an offset T style turn with visible fixing and a slot release mechanism form the outside
- 200A model has the same offset T style turn with visible fixing and a turn button safety release handle from the outside
- Maximum door thickness is 35mm
- Spindle length is 50mm
- Both models are supported with an internal turn, “vacant” or “engaged” external indicator and a staple to house the indicator bolt
- Indicator measures 60mm x 45mm
- Back case measures 70mm x 40mm
- Made of die cast zinc construction in a satin chrome finish
LENLOK 300 SERIES LOCK & INDICATOR BOLT
The 300 series are surface mounted, concealed fix, and with an emergency slot release (M300CF) or safety finger turn release mechanism (M300SF). In addition, the ambulant lock model satisfies the Disability Standard AS1428.1 for ambulant cubicles.
M300SF Model

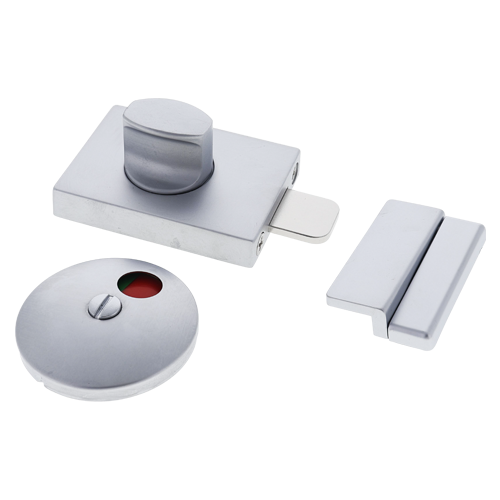

M300CF Model
- The M300CF has a round indicator and an external slot release mechanism
- The M300SF has the same round indicator but with an external safety finger turn release mechanism
- The turn bolt has a stylish centred turn knob with concealed fixing and a bolt projection of 19mm
- This series has a more commercial looking round exterior indicator which offers an indicator in a colour dot format of either red or green to indicate whether engaged (red) or vacant (green)
- Supplied with an internal turn, a “red” or “green” external indicator and a staple to house the indicator bolt
- Body size of 68mm (W) x 50mm (H) x 32mm (D).
- Indicator has a 50mm diameter
- Made of diecast zinc construction
- Available in a satin chrome finish

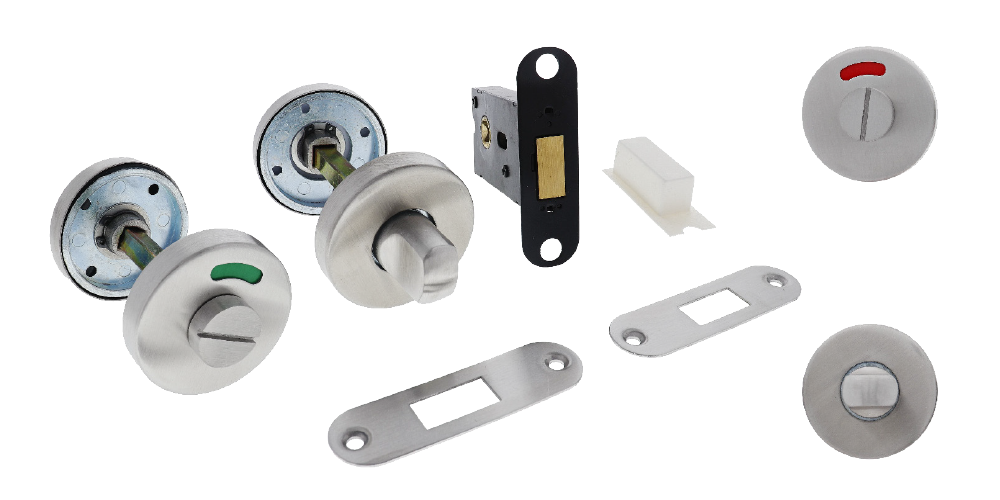

LENLOK 400 SERIES LOCK & INDICATOR BOLT
The 400 series are surface mounted, concealed fix and morticed indicator bolts that comes in three variations which include an emergency slot, emergency slot and thumb turn, and an emergency slot and thumb turn with an offset pin. Made from 304 grade stainless steel the 400 series is a strong performer for everyday use.
- This series has a more commercial looking round exterior indicator which offers an indicator in a colour quarter moon format of either red or green to indicate whether engaged (red) or vacant (green)
- M400MI has a stylish round interior turn knob with concealed fixing and a slot release mechanism from the outside
- M400MI-A has a stylish round interior thumb turn with concealed fixing and a slot release mechanism from the outside
- M400MI-AOFF has a stylish round interior thumb turn offset pin with concealed fixing and a slot release mechanism from the outside
- Supplied with the internal knob turn, a larger slot “red” or “green” external indicator and a strike to house the indicator bolt
- Available in a stainless steel finish with a solid brass latch

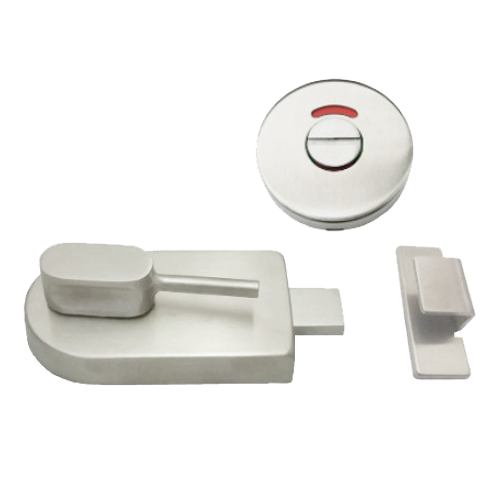

LENLOK 700 SERIES LOCK & INDICATOR BOLT
The 700 series is a surface mounted, concealed screw fix indicator bolt and made from 304 grade stainless steel to endure heavy use. To protect the indicator from wear and tear a rubber bumper stop has been added. Multiple fixing points have also been included to support heavy use. In addition, the ambulant lock model satisfies the Disability Standard AS1428.1 for ambulant cubicles.
- Surface Mounted, Concealed Screw Fix
- 304 stainless steel cover and rubber bumper stop
- Integrated Bumper Stop, multiple fixing points for heavy duty use
- Lift off staple
- Deemed to satisfy Disability Standard AS1428.1 for ambulant cubicle specification only
- Available in a satin stainless steel finish
