Lenlok

LOCKING CAM LOCKS

200 Different Key Combinations

Chrome Plate Finish

Lenlok Locking Cam Locks are one of the most widely used Cam Locks across multiple manufacturing industries and retrofit markets across Australia. Lenlok locking Cam Locks are primarily used for sheet metal manufacturing such as letterboxes, sheet metal access panels, timber cupboard doors, drawer fronts, general cabinet manufacture, acrylic display units and hinged glass door locks.

These standard wafer Cam Locks are available in different keying profiles such as Lenlok key profile, LF profile, or a tubular key profile. They are available in a round or square face, keyed to differ or keyed alike with different keying groups, come in variety of lengths from 11mm to 32mm, have a 27mm size cam, and can be master keyed to suit a key system hierarchy.

These locking Cam Locks have been manufactured to withstand high usage and have been a reliable solution for countless applications over the past three decades.

Specs & Dimensions

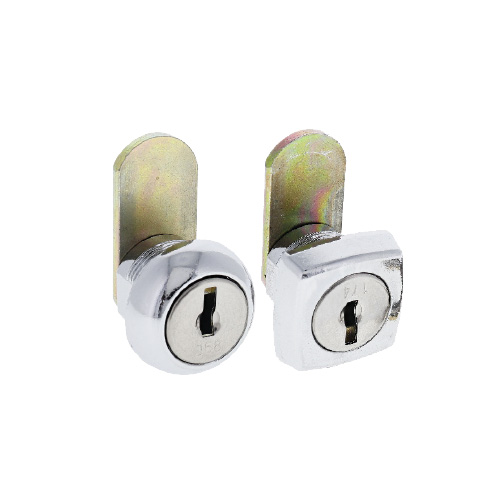

11mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation
  • Round face or square face with body length of 11mm
  • Master key available
  • 200 different key combinations
  • Key blanks available – use Keyline LF16 (Silca LF6R)
  • Supplied with 27mm straight cam (CM27MM) fitted
  • Supplied standard with 90-degree movement (12-3 o’clock). For 180 degrees or anti-clockwise – contact sales.
  • LF Profile
  • Applicable with 60000 key series

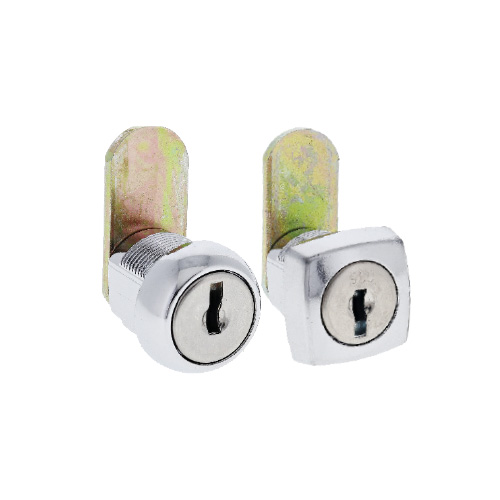

16mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation
  • Round face or square face with body length of 16mm
  • Master key available
  • 200 different key combinations
  • Key blanks available – use Keyline LF16 (Silca LF6R)
  • Supplied with 27mm straight cam (CM27MM) fitted
  • Supplied standard with 90-degree movement (12-3 o’clock). For 180 degrees or anti-clockwise – contact sales.
  • LF Profile & Lenlok Key Profile
  • LF Profile applicable with 60000 key series

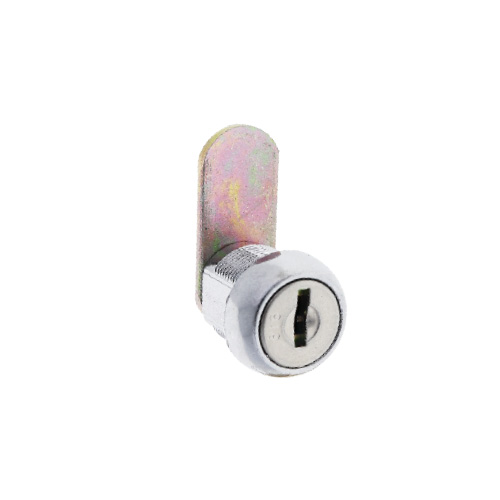

16mm LW2 Cam Lock

  • Nut fixed – comes with zinc plated hexagon nut for installation.
  • Round face with body length of 16mm
  • Non-mastered
  • 200 different key combinations
  • Key blanks available – use Keyline LKW2 (Silca LW3)
  • Supplied with 30mm straight cam (CM30MM) fitted
  • Lenlok Key Profile

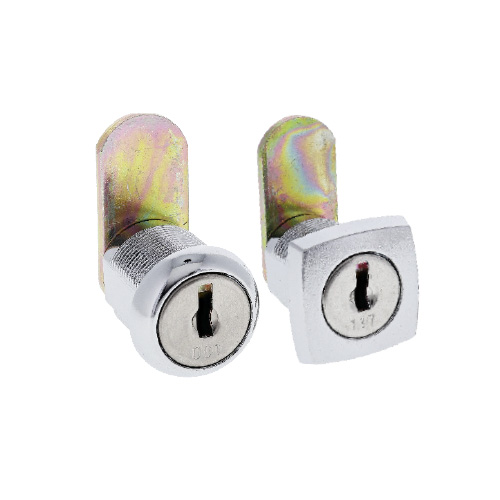

19mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation
  • Round face or square face with body length of 19mm
  • Master key available
  • 200 different key combinations
  • Key blanks available – use Keyline LF16 (Silca LF6R)
  • Supplied with 27mm straight cam (CM27MM) fitted
  • Supplied standard with 90-degree movement (12-3 o’clock). For 180 degrees or anti-clockwise – contact sales.
  • LF Profile
  • Applicable with 60000 key series

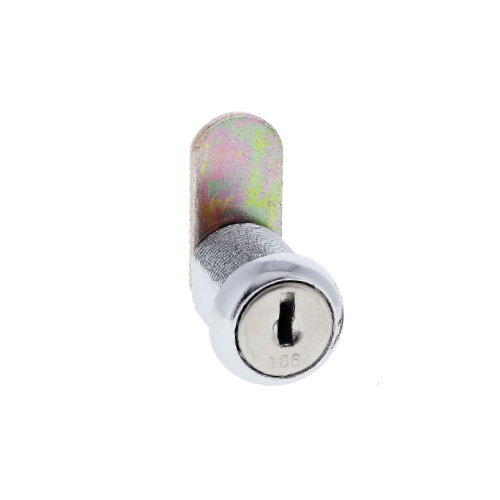

22mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation
  • Round face with body length of 22mm
  • Supplied with a pronged washer to be fixed on the inside to prevent the lock
  • from spinning in the hole
  • Also available with CL003 key number
  • Master key available
  • 200 different key combinations. Also available with CL003 key number
  • Key blanks available – use Keyline LF16 (Silca LF6R)
  • Supplied with 27mm straight cam (CM27MM) fitted
  • Supplied standard with 90-degree movement (12-3 o’clock). For 180 degrees or anti-clockwise – contact sales.
  • LF Profile & Lenlok Key Profile
  • LF Profile applicable with 60000 key series

30mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation.
  • Round face with body length of 30mm
  • Non-mastered
  • 200 different key combinations
  • Key blanks available – use Keyline LKW2 (Silca LW3)
  • Supplied with 30mm straight cam (CM30MM) fitted
  • Lenlok Key Profile

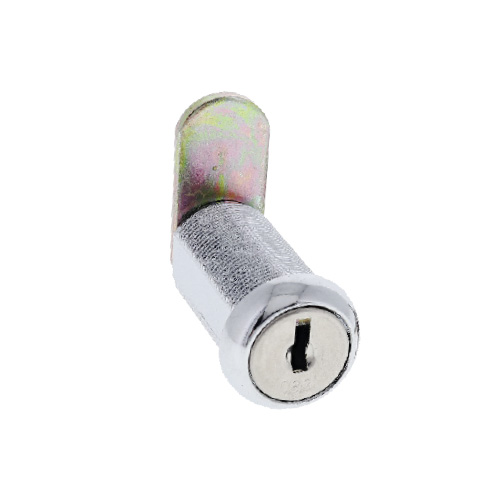

32mm Cam Lock

  • Nut fixed – comes with hexagon nut for installation
  • Round face with body length of 32mm
  • Supplied with a pronged washer to be fixed on the inside to prevent the lock from spinning in the hole
  • Master key available
  • 200 different key combinations
  • Key blanks available – use Keyline LF16 (Silca LF6R)
  • Supplied with 27mm straight cam (CM27MM) fitted
  • Supplied standard with 90-degree movement (12-3 o’clock). For 180 degrees or anti-clockwise – contact sales.
  • LF Profile
  • Applicable with 60000 key series
