Lenlok

SINGLE & DOUBLE ACTION SPRING HINGES

For over 50 years, HFH has been the most trusted name in double & single action hinges. From humble beginnings in a Melbourne factory, this range went on to become the benchmark in the industry. Renowned for their high quality, long life and ease of installation, HFH hinges are still the first choice of experienced installers. HFH hinges are now under the Lenlok banner, but are still the original high quality product you have always known and trusted.

SINGLE ACTION SPRING HINGES

HOLD CLOSED

  • Single action offers a hold closed function
  • Suits a door thickness up to 35mm
  • Has a load bearing of 35kg per pair
  • Maximum door size 2340mm x 820mm
  • Available in finishes of chrome plate and satin chrome as standard
  • This product is sold per pair (2)
Specs & Dimensions

HOLD OPEN

  • Single action offers a hold open function
  • Suits a door thickness up to 35mm
  • Load bearing of 35kg per pair
  • Maximum door size 2340mm x 820mm
  • Available in a satin chrome finish
  • This product is sold as a pair (2)
Specs & Dimensions

DOUBLE ACTION SPRING HINGES

Specs & Dimensions

75mm

  • Suitable for doors up to 28mm thick
  • Load bearing of 10kg per pair
  • Maximum door size of 2040mm x 620mm per pair (2)
  • Available in a satin chrome and chrome plate finish

100mm

  • Suitable for doors up to 35mm thick
  • Load bearing of 20kg per pair
  • Maximum door size of 2040mm x 820mm per pair (2)
  • Available in a chrome plate, satin chrome, and brass finish

125mm

  • Suitable for doors up to 45mm thick
  • Load bearing of 40kg per pair
  • Maximum door size of 2340mm x 870mm per pair (2)
  • Available in a chrome plate, satin chrome, and brass finish

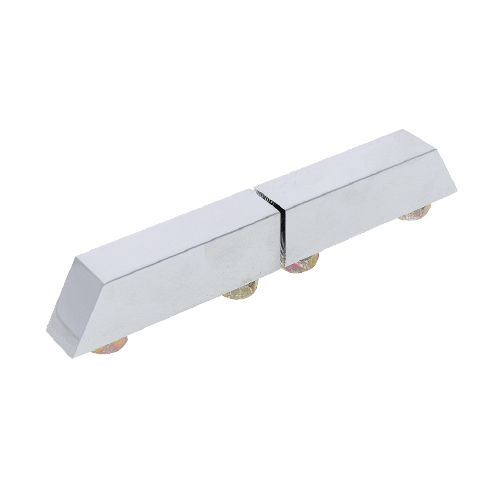

SIMPLE PIN HINGE

In addition, a simple pin hinge is available for applications such as electrical cabinets or machinery.

  • Size of 108mm x 12.7mm x 16mm
  • M6 thread
  • Available in a chrome plate finish
Specs & Dimensions
